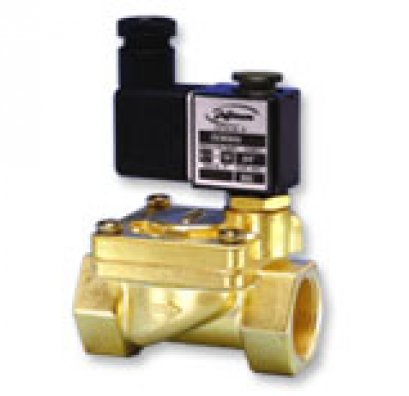

Serie 2036

Normally closed.Pilot operated.Forged brass body.BSP or NPT threaded connections.Plastic or metal core diaphragm.Shape B DIN 43650 connection encapsulated minicoils.IP65 and NEMA4 Protection.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.Shading coil: copper.

Sold 0 items

0 THB ฿0

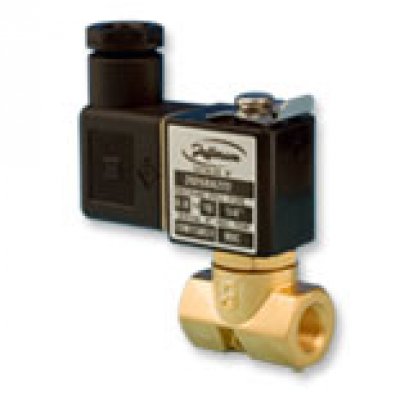

Serie 2026

Normally closed.Direct acting. No minimum differential pressure to operate.Forged brass compact body.BSP or NPT threaded connections.Encapsulated minicoils.Shape B DIN 43650 connection.IP65 and NEMA4 Protection.Response time with air at 6 bar (10 milliseconds) Approximate weight: 170 g. (0.38 Lb)Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.Shading coil: copper.

Sold 0 items

0 THB ฿0

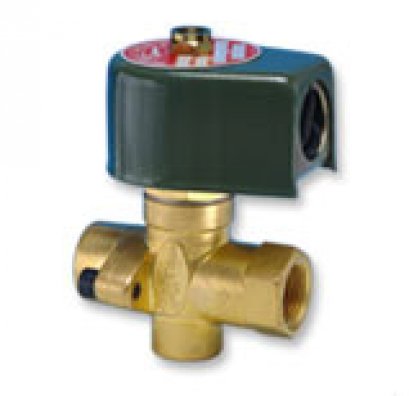

Serie 1393

Normally closed and normally open.Direct acting. No minimum differential pressure to operate.Forged brass, nickel-plated forged brass body.BSP or NPT threaded connections.Stainless steel blade type closure PTFE seats.The straight passage prevents pressure drops and turbulence caused by the fluid’s changing direction as it is the case with conventional valves.Shape A DIN 43650 connection encapsulated coils.IP65 and NEMA 4 Protection.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.Shading coil: copper.

Sold 0 items

0 THB ฿0




Serie 1390

Normally closed and normally open.Pilot operated.Brass, stainless steel body.BSP or NPT threaded connection.Encapsulated coils. Shape A DIN 43650 Connection.IP65 and NEMA4 Protection.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.Shading coil: copper (brass body) silver (s.s. body).

Sold 0 items

0 THB ฿0




Serie 1342

Normally closed or normally open.Pilot operated.Body: Forged brass or bronze, stainless steel, etc.Shape A DIN 43650 Connection encapsulated coils.IP65 and NEMA4 Protection.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.Shading coil: copper (brass body) silver (s.s. body).

Sold 0 items

0 THB ฿0




Serie 1335

Forged brass, stainless steel body.BSP or NPT threaded connections.Encapsulated plug-in coils. Shape A DIN 43650Connection. IP65 and NEMA4 Protection.Normally closed and normally open.Plastic or metal core diaphragm.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.Shading coil: copper (brass body) silver (s.s. body).

Sold 0 items

0 THB ฿0




Serie 1327

Normally closed and normally open.Direct acting. No minimum differential pressure to operate.Brass, iron, stainless steel body.1/4” BSP or NPT threaded connections.DIN 43650 connection encapsulated coils, shape A.IP65 and NEMA4 protection.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430F s.s.Shading coil: copper (brass body) silver (s.s. body).Approximate weight: 0.5 kg. (1.1Lb)

Sold 0 items

0 THB ฿0




Serie 1314

Normally closed.Pilot operated.Bronze, stainless steel body.BSP or NPT threaded connection.Brass, stainless steel piston, among others.Coil: Encapsulated up to 150º C (302º F) or coated with glass fibre and insulating impregnation up to 180º C (356º F).Interconnection cables. Internal general use housing.3/4 ” NF electric connection.Core tube: 304 s.s. Core spring: 302 s.s. Core: 430 F s.s.

Sold 0 items

0 THB ฿0
