Large Capacity Flow Meter MODEL RK1950AP SERIES


Amber tapered tube with secure structure


หมวดหมู่ : Mass Flow (Klofoc) Rota flow



• Float receiver functions also as a joint, for secure piping.
• The block tapered tube has an O-ring seal.
• The integral housing protects the tapered tube.
• The tapered tube made of engineering plastic is impact-resistant.

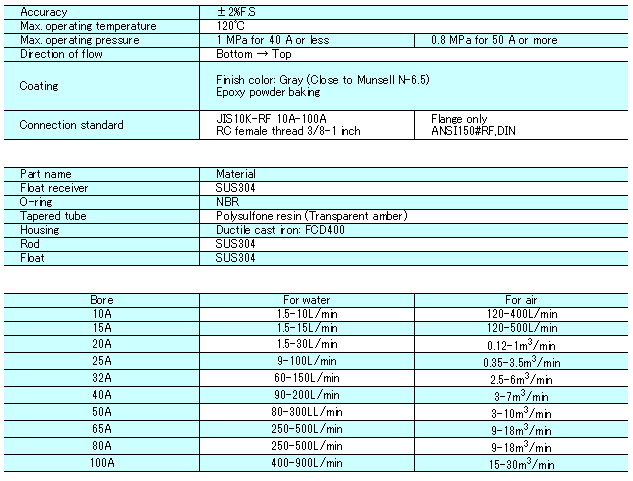

Standard Specifications

* Gas (Applicable to N2, O2, H2, Ar, etc.)
* Maximum scale range (20℃ at 0.05MPa for AIR)
* Threaded type for 10–25 A
  Flange type for 10–100 A
