Purge Flowmeter with Needle Valve MODEL RK1650 SERIES

คุณสมบัติสินค้า:

This is a completely renewed model of existing KOFLOC RK1600R with sophisticated design to fit sophisticated laboratory or plant equipment.

หมวดหมู่ : Mass Flow (Klofoc) Rota flow

Share

Features

・Compact
A compact flowmeter with variations of total length of 84 mm, 104 mm, 124 mm and 154 mm for choice according to the user's needs
・Low pressure loss
Pressure loss minimized to allow applications for low supply pressure
・Choice of needle valve to suit the user's needs
Four types of needle valve available for your choice according to the requirement of supply pressure
・Superior stability
All tubes are precision-formed to provide the float with outstanding repeatability and stability.
・Economical
A flowmeter at quite affordable price achieved through our all-out effort at streamlined design

Applications

・For environmental instrumentation systems
・For general instruments for analysis
・For purge systems
・For semiconductor manufacturing equipment

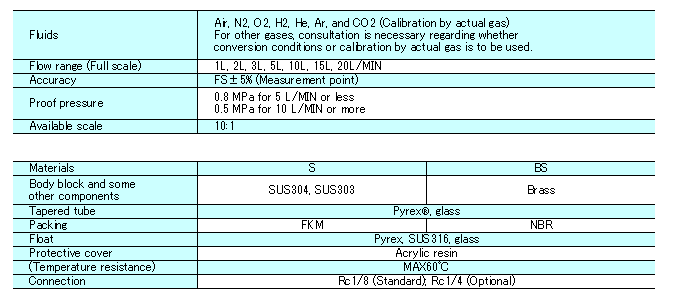

Standard Specifications
